Size

(mm)

WLL

(t)

Ultimate

Load(t)

Weight

(kg)

Handle

Length(mm)

Take Up

(mm)

Compression Strength

of Spring(kg)

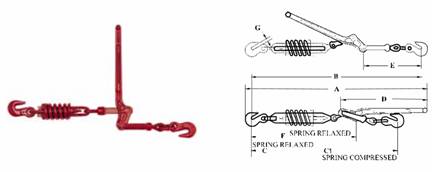

Dimensions(mm)

A

B

C

C1

D

E

F

G

8-10

2.45

7.27

5.1

406

108

1040

832

781

711

673

406

264

483

12.7

10-13

4.17

9.09

8.48

470

114

1500

945

864

749

773

475

313

530

16
