FD
Size
(mm)
WLL
(t)
Proof Load
(kN)
Weight
(kg)
Handle Length
Take Up

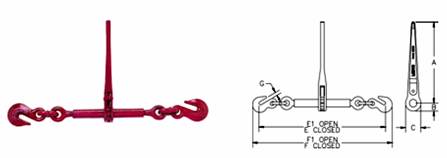

Dimensions(mm)
A
B
C
E
E1
F
F1
G
8-10
3
59
5.09
356
203
35.1
70
583
786
638
842
12.7
10-13
4.17
82
5.82
641
845
702
905
16
13-16
5.9
116
6.6
670
873
748
951
18.3
