Size

(mm)

WLL

(t)

Proof Load

(kN)

Ultimate Load

(t)

Weight

(kg)

Handle Length

(mm)

Take Up

(mm)

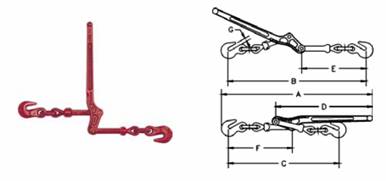

Dimensions(mm)

A

B

C

D

E

F

G

8-10

2.45

48

8.63

3.18

406

114

613

562

454

406

264

264

12.7

10-13

4.17

82

15

5.66

475

114

730

654

540

475

313

314

16

13-16

5.9

116

20.9

8.93

533

121

794

756

635

533

372

349

18.3
